Assembly
You MUST ONLY use the supplied Apple MFI Certified charging cable. Using any other charging cable will render your warranty null and void.

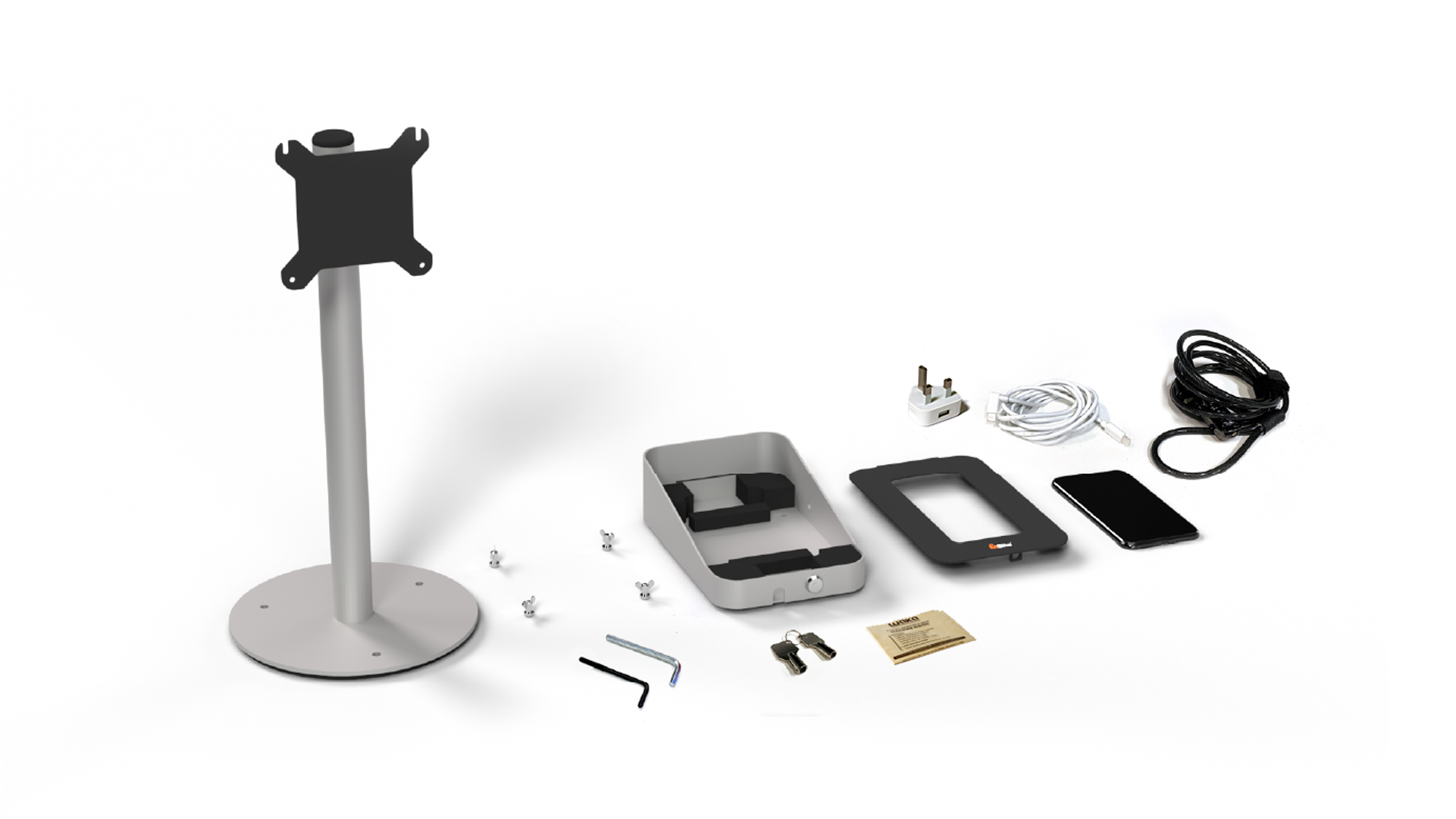

If any equipment is missing, please contact our service desk on:
0151 230 5593 or support@msite.com
Loosely attach the top two wing nuts to the top of the lock box.

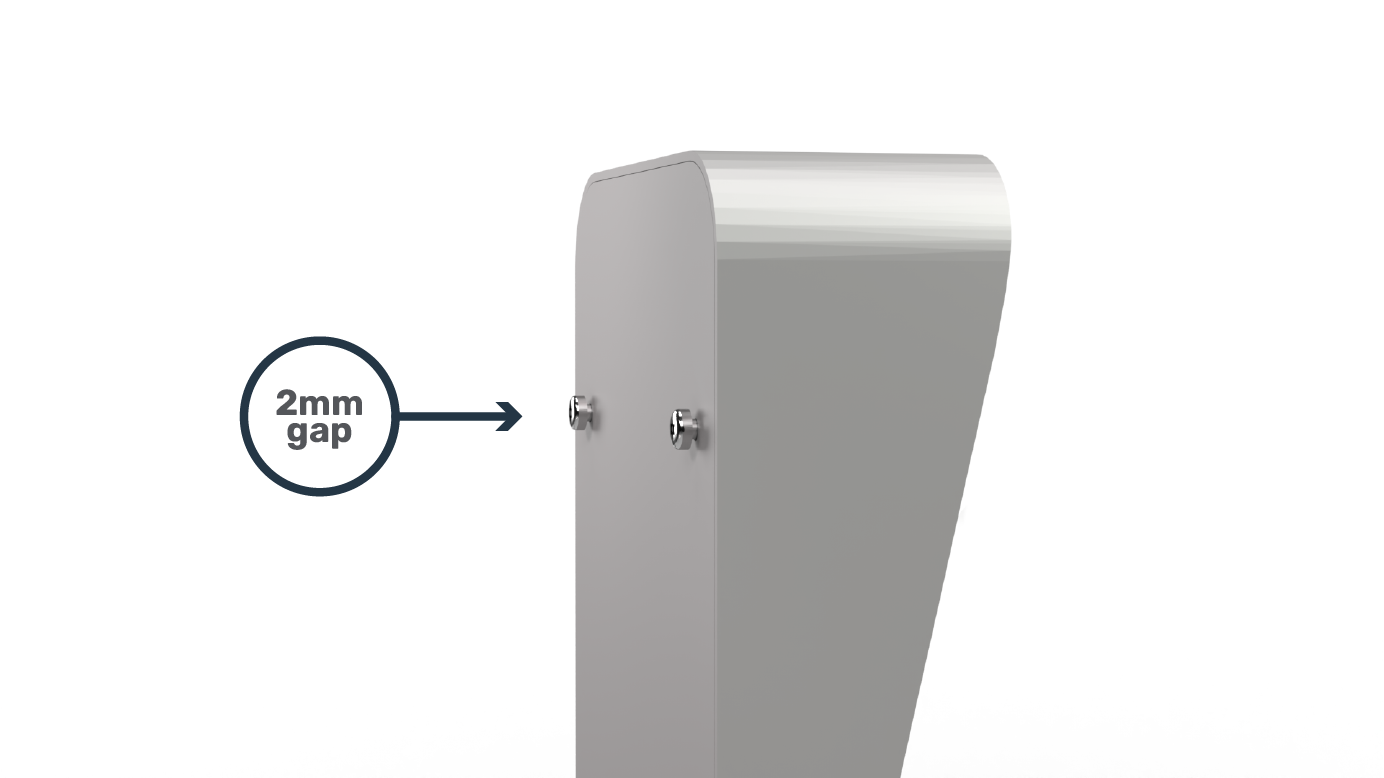

Please leave a 2mm gap so you can slide the lockbox onto the four way bracket.

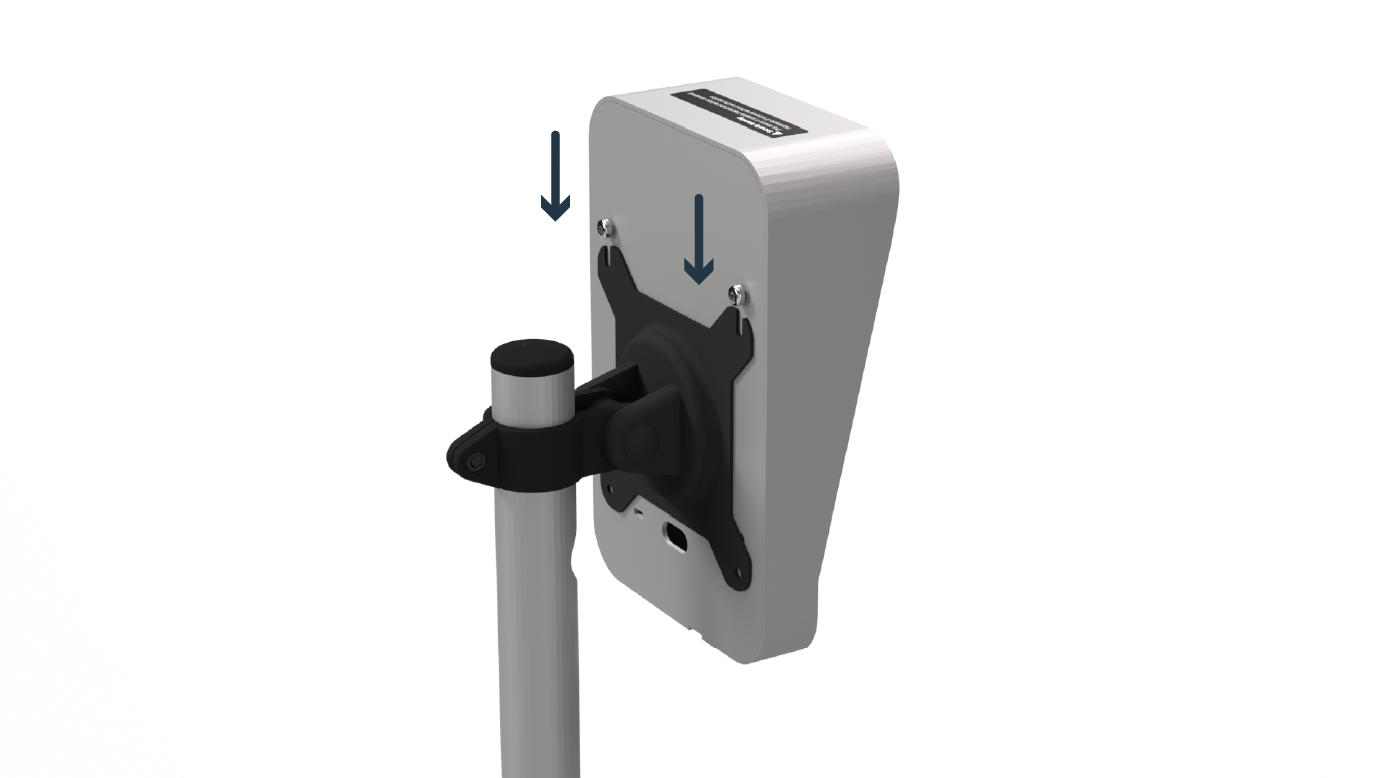

Slide the lock box down onto the bracket, attaching it via the top two screws.

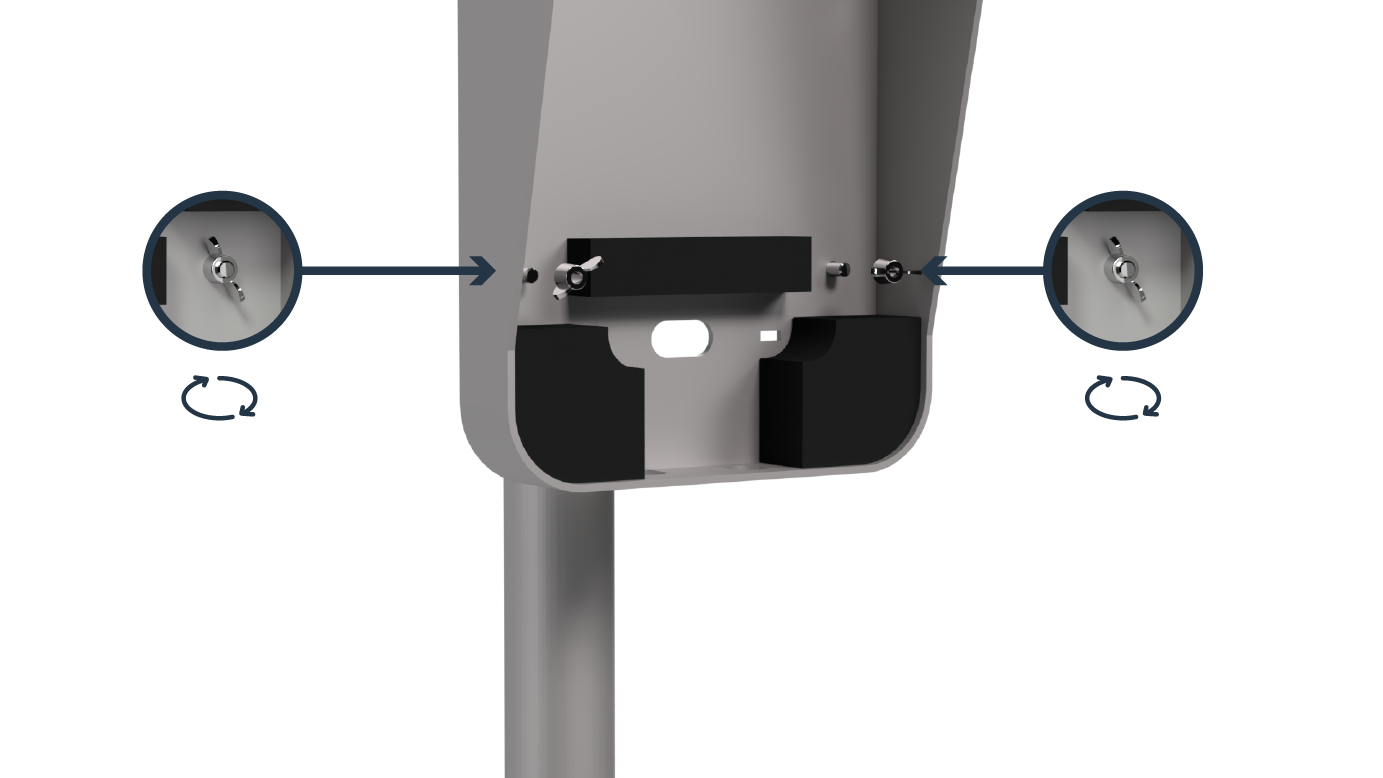

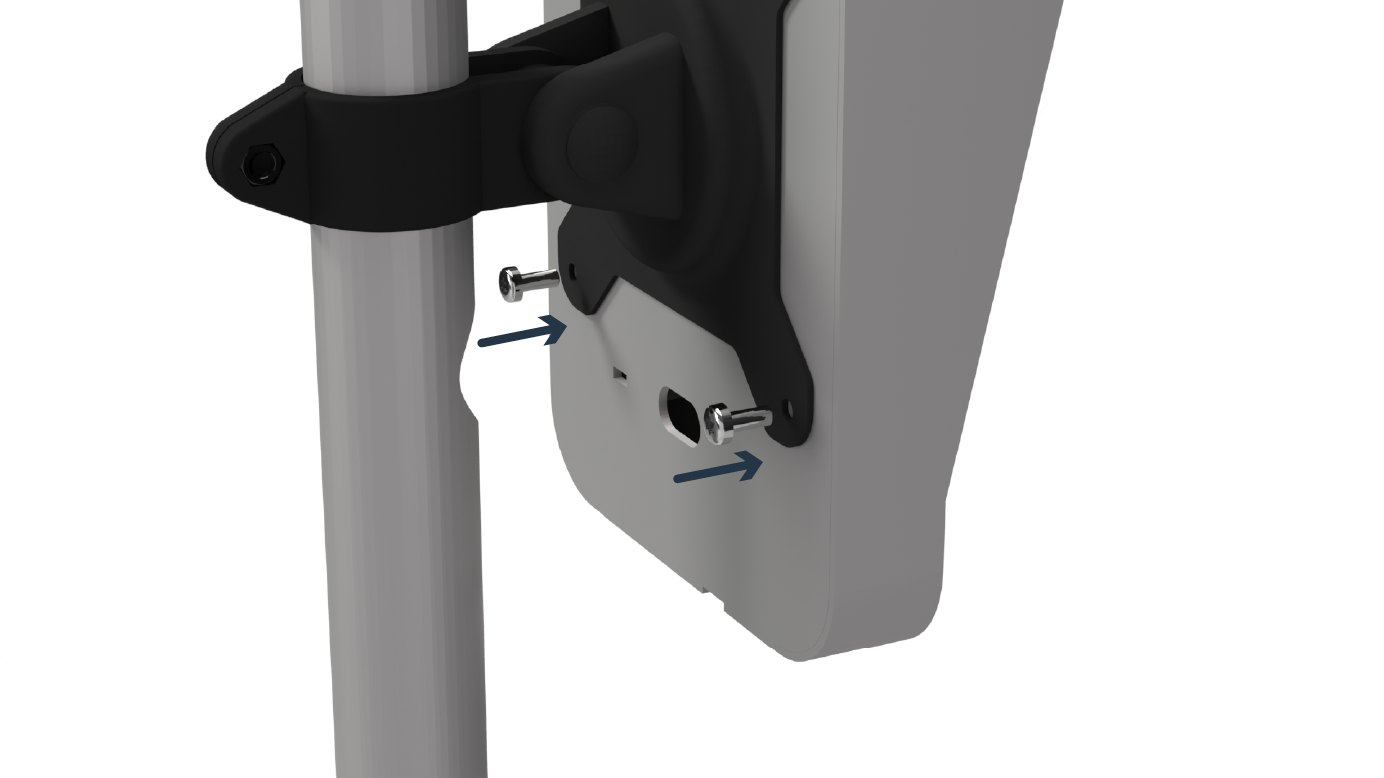

Now, please insert the bottom two screws.

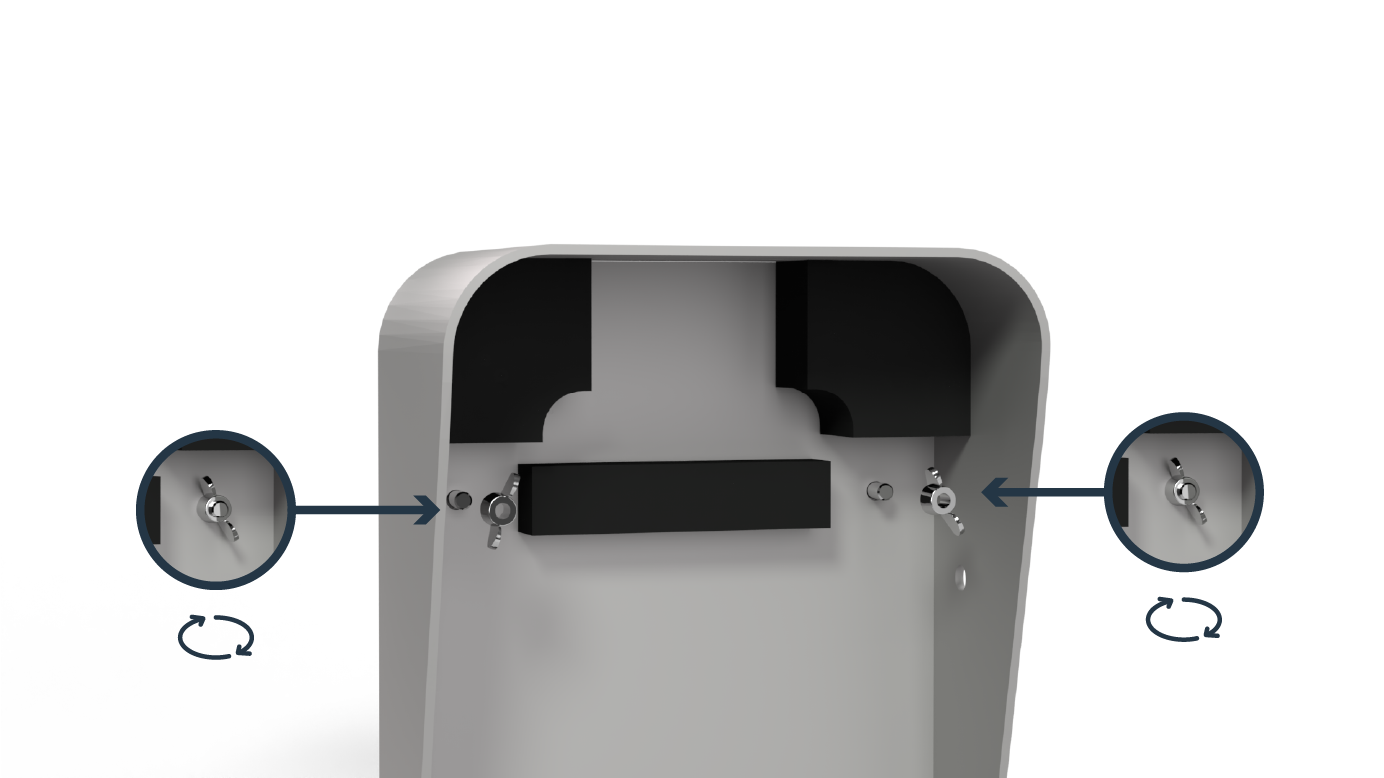

Next, please tighten the wingnuts using the star headed allen key.

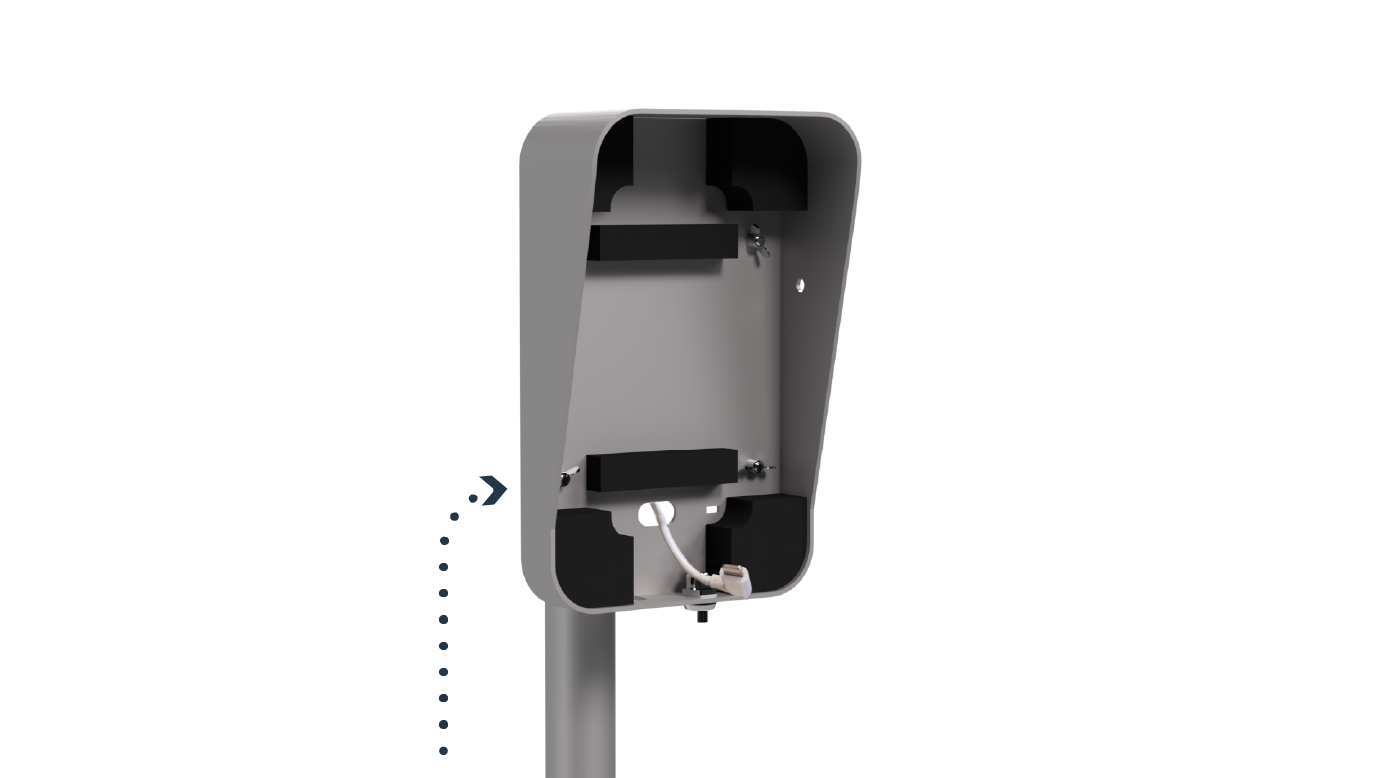

Feed the charging cable through the base of the stand and into the back of the enclosure through the hole.

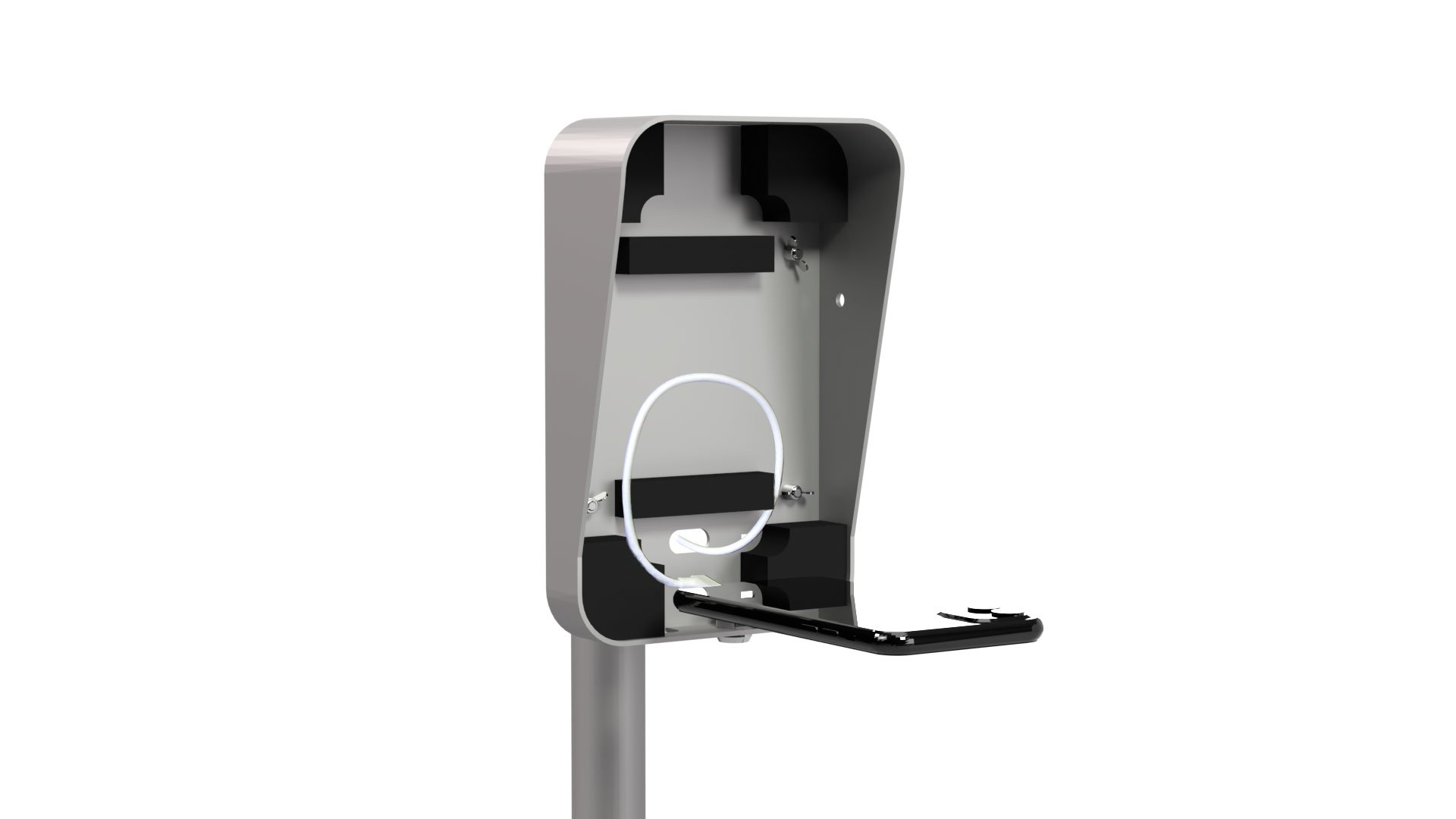

Loop the charging cable around the lower rubber support to prevent cable snagging.

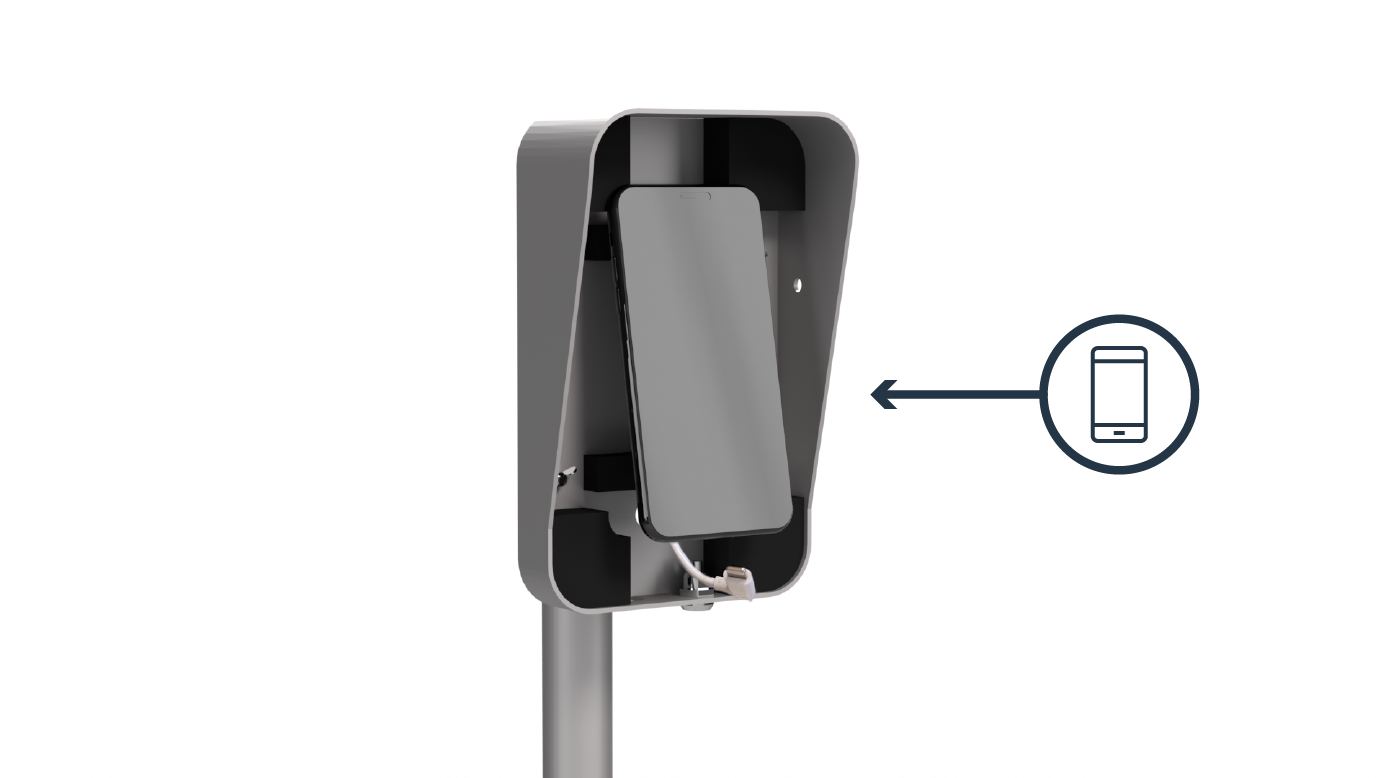

Plug the charging cable into mobile device and fit the device into the mould.
To preserve your product's life span, please periodically disconnect from mains power and allow the battery to drain.

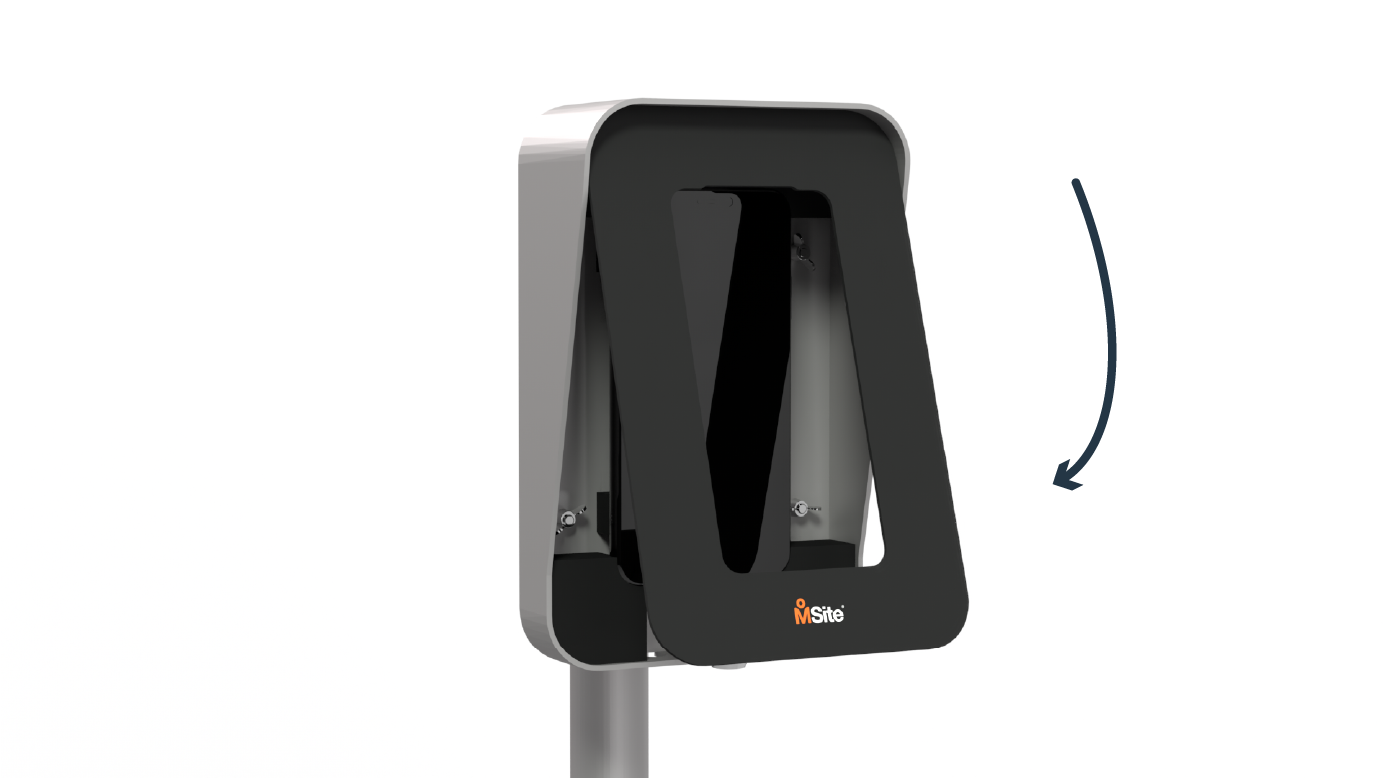

Insert face plate lip into the top of the enclosure and push closed.

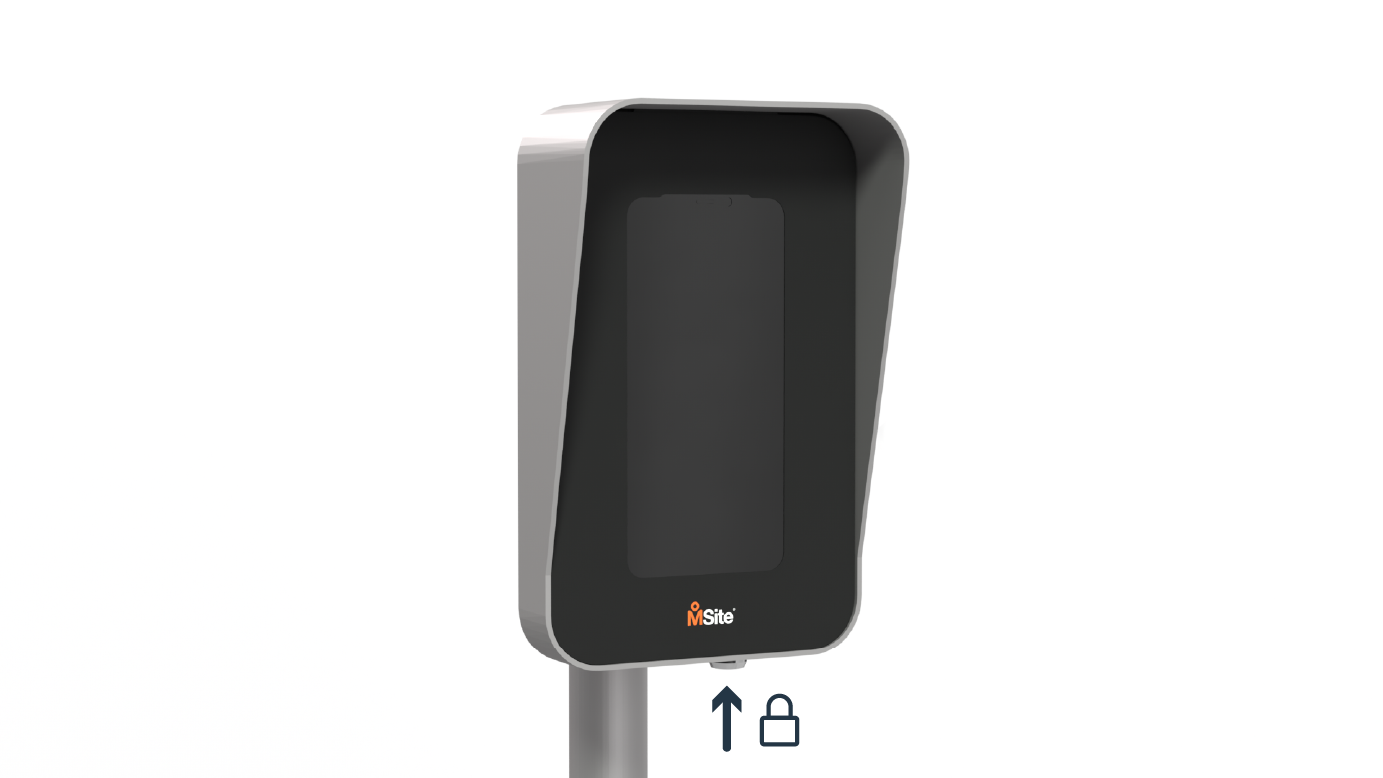

Finally, push the security lock to secure the enclosure.
Now that you've finished the assembly, you need to set up and log into the app.
