    MSite Full-Height Turnstile

    Our turnstiles offer security for the perimeter of your site and keep your team moving – whether large or small.

    Withstanding tough weather and operation conditions with 3 and 4 arm design they can be assembled in either a single or double size.

    Full-Height_2022

    Check our specs

    Corrosion resistant and zinc plated, our turnstiles are fitted with quiet mechanisms and a combination of stainless steel and self-lubricating engineering plastics.

    Keep it moving

    Get workers on site securely using our turnstiles with self-centering rotation system. Prevent bottlenecks in queueing, due to the rotor returning to starting position after every rotation - ensuring free flow and reduced queues.

    Full Height Turnstile (1)

    Take a turn for the better

    Featuring a CE compliant Rotalock rotation locking system, the full-height turnstiles turn in both directions.

    Full Height Turnstile (2)

    Be on the safe side

    In the event of a power failure they can be factory-set to auto-lock on power failure or to auto-unlock on power failure.

    Full Height Turnstile (3)

    Customise it your way

    Suitable for interior and exterior installations, designed by professional engineers and refined for over 10+ years.

    The right turn

    ✔️ Robust exterior, corrosion resistant, unaffected by dust, dirt or moisture.

    ✔️ Fire alarm options which set turnstiles to free rotation when triggered indefinitely.

    ✔️ Programmable logic with user diagnostic features.

    ✔️ Suspended rotor technology eliminating stress on the base bearing with shock absorbing rubber coupling system.

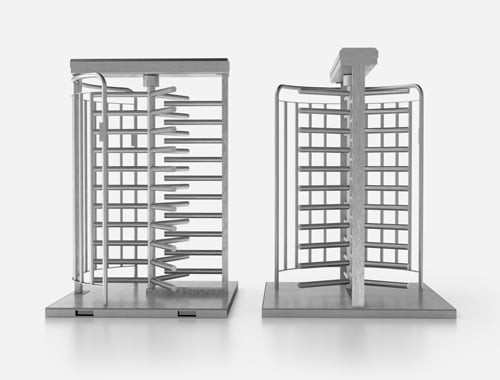

    Full-Height_Front-&-Side-2022

    MSite Full Height Turnstile Specifications

    Design 1

    Design_1 Plan view-1

    Plan view

    Single Turnstile Suggested Shelter Design 1 - Plinth width: 500mm required either side of Turnstile for Biometric Readers. Do not scale.

    Design 1_Elevation

    Side

    Single Turnstile Suggested Shelter Design 1 - 2 x 240VAC 6A Fuse Spur on site/ secure side (Turnstile & ACS). 200mm VOID above turnstile for removal of lid. Sarel Enclosure to be located on site/secure side. Do not scale.

    Design 2

    Design 2_plan view

    Plan view

    Single Turnstile Suggested Shelter Design 2 -Minimum 50mm cavity is essential. Do not scale.

    Design 2_Elevation

    Side

    Single Turnstile Suggested Shelter Design 1 -Walls must be removable (access to cavity). 2 x 240VAC 6A Fuse Spur on site/ secure side (Turnstile & ACS). 200mm VOID above turnstile for removal of lid. Sarel Enclosure to be located on site secure side. Do not scale.

    Tolerance

    + or - 5mm

    Weight

    <400kg

    Power Req

    2 x 240v 7amp

    Delivery / offload information

    Units are delivered on flatbed vehicle. These are then offloaded with a manual lift assy (or tail lift) and pump trucked to location of work.

    Required of customer prior to install

    • 300mm depth concrete plinth for turnstile with flat level surface.
    • Minimum plinth dimensions (L) x (W) x (D): 1930mm x 1430mm x 300mm.
    • Timber shelter built to MSite specification.
    • 2x 240v isolated fused spur at turnstile location.
