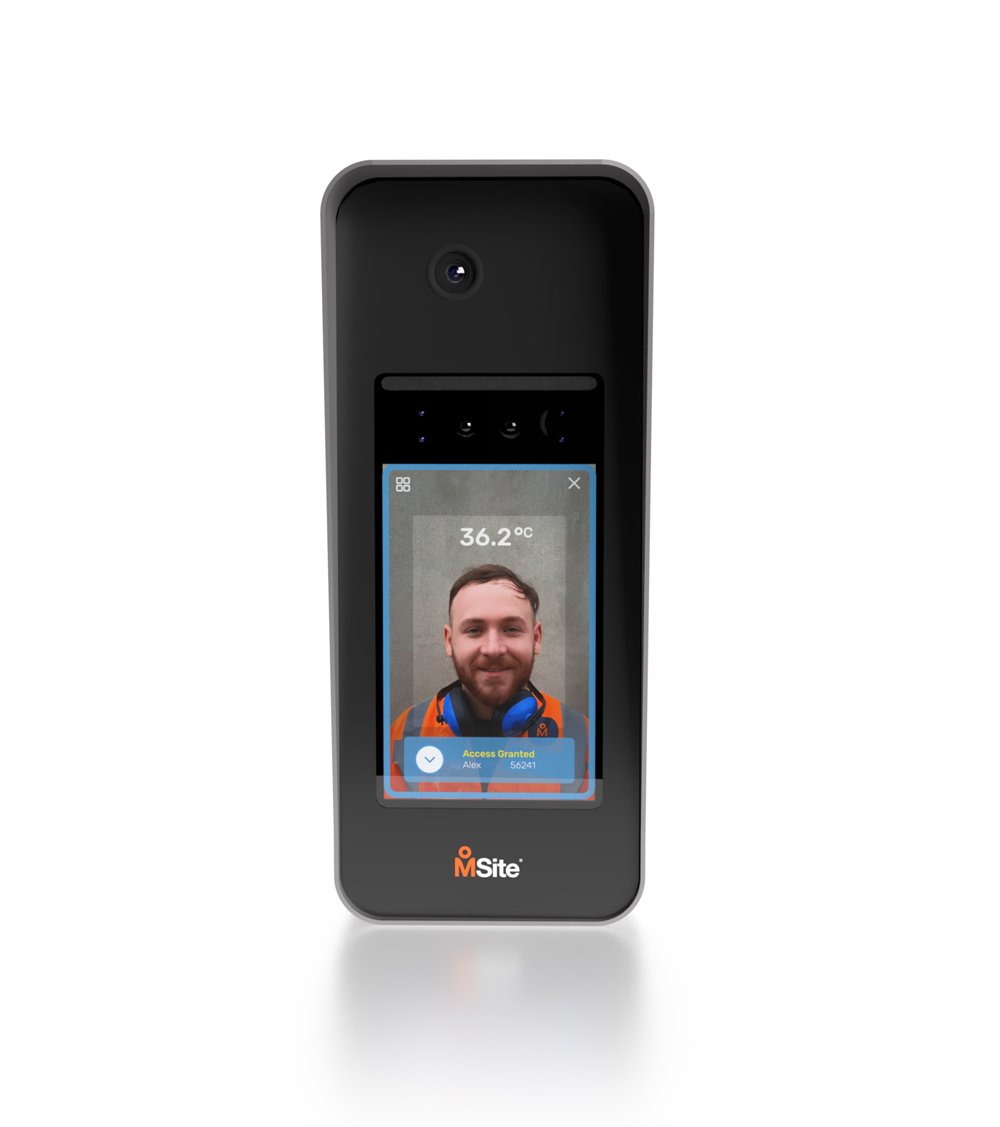

MSite Face
MSite Face is a highly accurate facial recognition solution that integrates with our access control equipment such as PODs and turnstiles.
It biometrically verifies worker identity and allows workers access through PODs and turnstiles to sites, based on their user permissions.

Check our specs
Featuring a 7” LCD display screen, the device is dustproof and waterproof (IP65) and easy to maintain. The durable casing has been designed with construction sites in mind. There is also an optional temperature screening module available.
Security as a priority
Our easy-to-use device provides contactless sign-in and site access for your workforce, with a built-in walkthrough on how to use our facial recognition technology. If the user of MSite Face has incorrect permissions to enter your site or is not recognised by the reader, they will be denied access.
Download the MSite Face Overview
Fill in the form to download the MSite Face overview
.png)
Contactless Sign-in & Site Access
Automatically blocks site access if operatives don’t have the correct permissions.
.png)
Easy Enrolment
Easily enrol new workers from the MSite system, the CITB database or a webcam.
.png)
GDPR Compliance
Workers data is secure and encrypted, ensuring full GDPR compliance.
Faces into places
✔️ Using infrared technology, the cameras built-in sensors can recognise faces quickly and accurately. It even works in poor lighting conditions.
✔️ Anti-spoofing solution, prevents spoofing using photography or 3D printed masks.
✔️ As Face Reader is a contactless solution, it reduces the spread of germs. It also has an optional feature to automatically restrict site access if worker skin temperature is too high.

MSite Face Technical Specifications

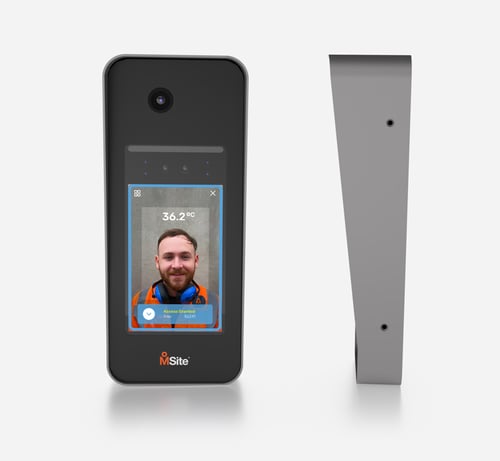

Maximum Dimension
Front
147mm x 334mm
Side
98mm
Recognition Distance
0.5m ~ 1.3m
Recognition Height
140cm ~ 190cm
Operating temperature
-20°C ~ 50°C
Operating Humidity
0% ~ 80%, non-condensing
LCD Resolution
800 x 1280 pixels
Matching Speed
Less than 0.5 sec
Max. User (1: N)
50,000
Interface
TCP/IP
IP Rating
IP65
Anti-spoofing
Additional Information
Please ensure Temperature Screening module is installed in an indoor and windless environment.
MSite Temperature Screening
Temperature Accuracy
≤±0.5°C (0.9°F)*/±0.3°C (0.5°F)**
*For ±0.5°C accuracy, use the device:
- In recommended ambient temperature (10°C to 35°C or 50°F to 95°F)
- 90 minutes after turning on for self-calibration
**According to KOLAS (Korea Laboratory Accreditation Scheme) calibration certificate.
Max. Resolution
120 x 160 (19,200 pixel)
Frame Rate
25fps
NETD
≤ 50 mK (@25°C, F# = 1.0)
Field of View
37.2° × 50° (H × V)
Temperature Range
30°C to 45°C
Temperature Distance
50 cm~130 cm
Interface
USB
Operating Temperature
0°C to 50°C
Limitations
Disclaimer
MSite products cannot be used to diagnose any medical condition. MSite Thermal cameras can only identify individuals with skin temperature higher than a preset figure but should not be solely or primarily relied upon to diagnose or exclude a diagnosis of COVID-19, or any other illness.
The accuracy of temperature readings can be impacted by various environmental conditions such as temperature, exposure to sunlight and exposure to windy conditions. The unit should be installed internally in a wind free environment.
Please ensure Temperature Screening module is installed in an indoor and windless environment.
FAQ's
How quickly does the MSite Face perform biometric transactions?
MSite Face authenticates worker identity using a powerful face recognition algorithm which matches in less than 0.5 seconds, rapidly checking if they have the required site permissions and granting site access if everything checks out, allowing for quick, contactless biometric sign-in and site access
How easy is it to enrol a worker’s faces onto the MSite Face?
Enrolment for biometric facial recognition is very easy; we have several options available. These include:
- Capture an image with the PC’s webcam
- Upload an image from the PC’s hard drive
- Using an image pulled from the CITB/CSCS database
- Capture a photo using the MSite Supervisor App
Is the solution GDPR compliant?
All biometric data is encrypted and stored securely, fully in line with GDPR regulation. For more information on our how we manage and protect your data, head over to https://www.msite.com/gdpr-data-security.
